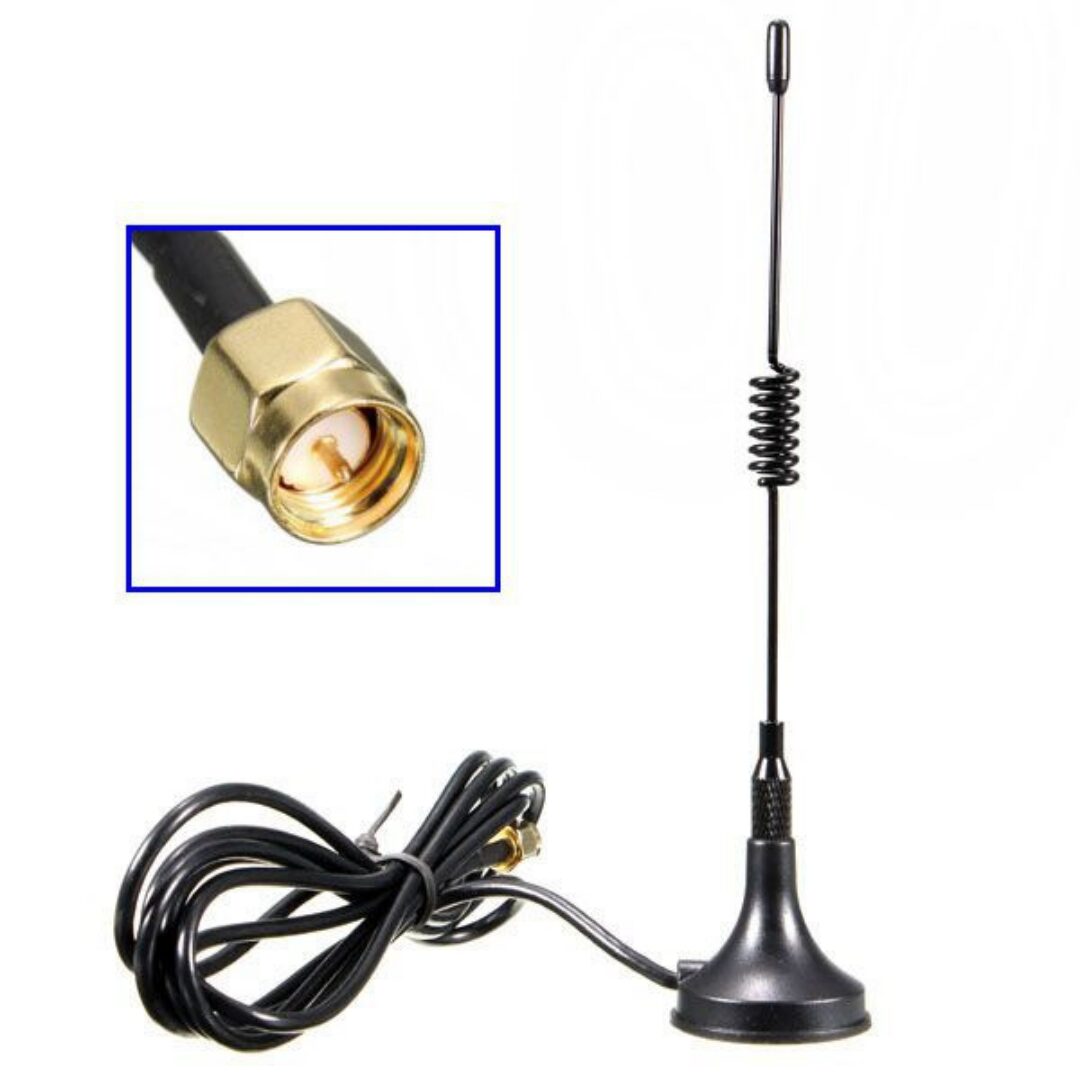

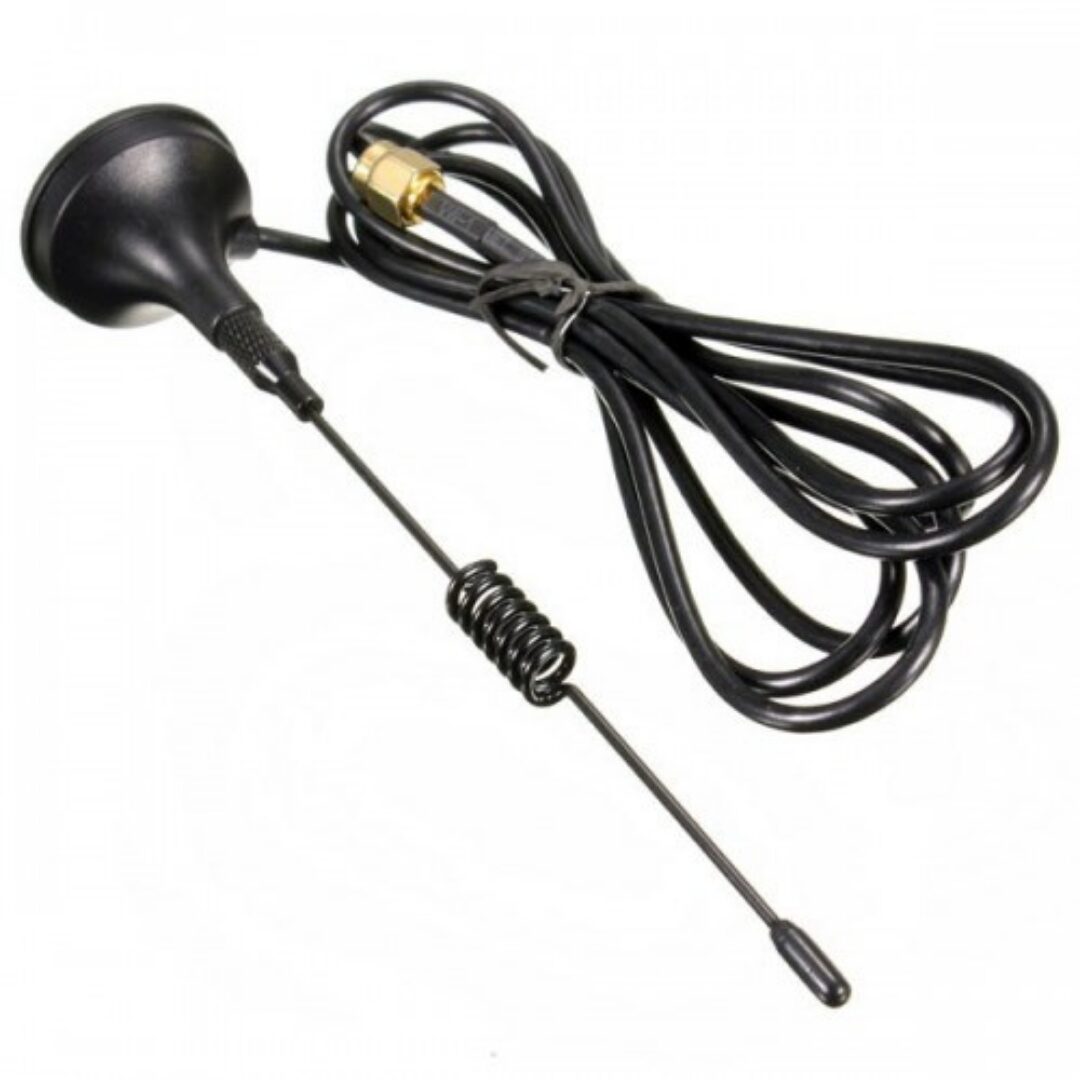

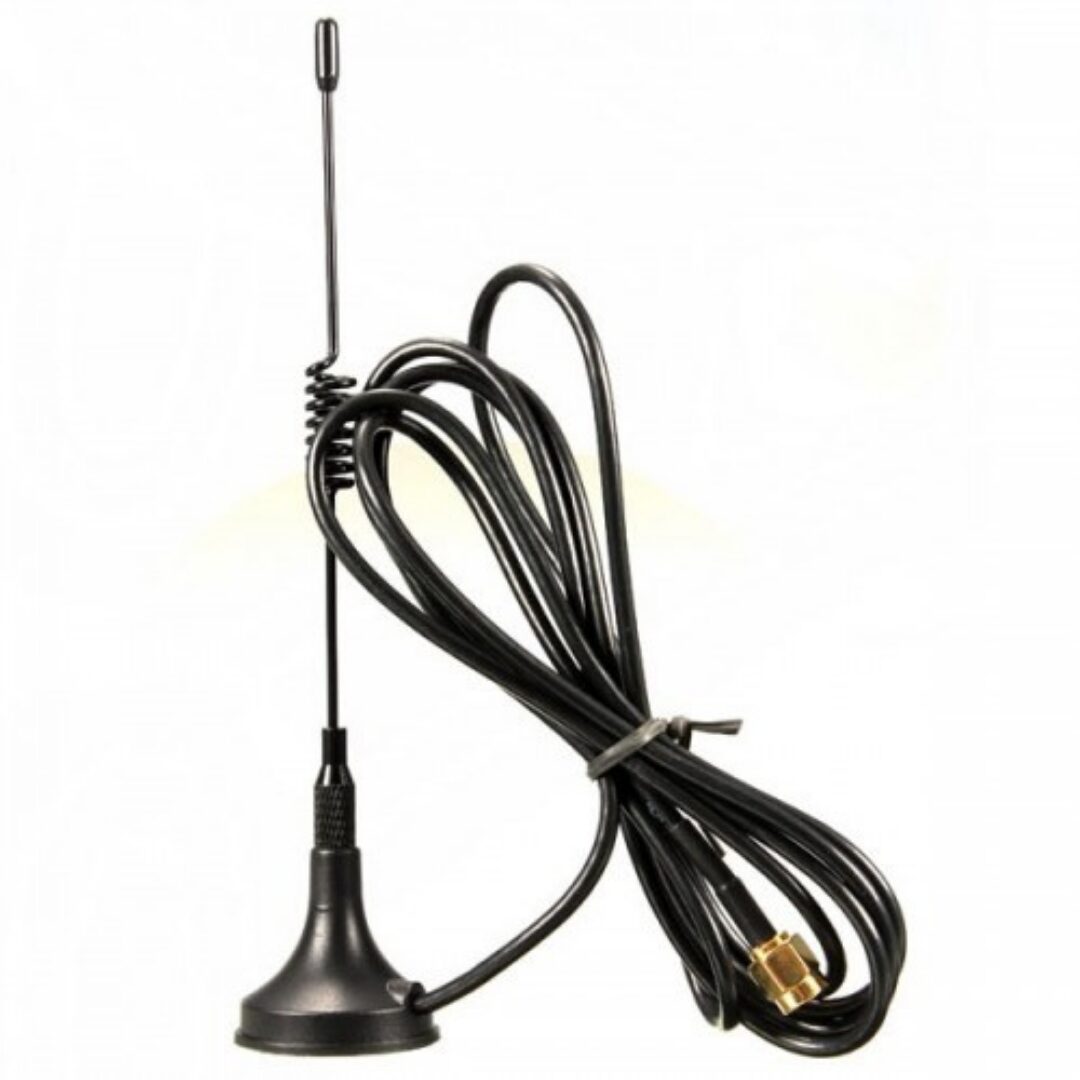

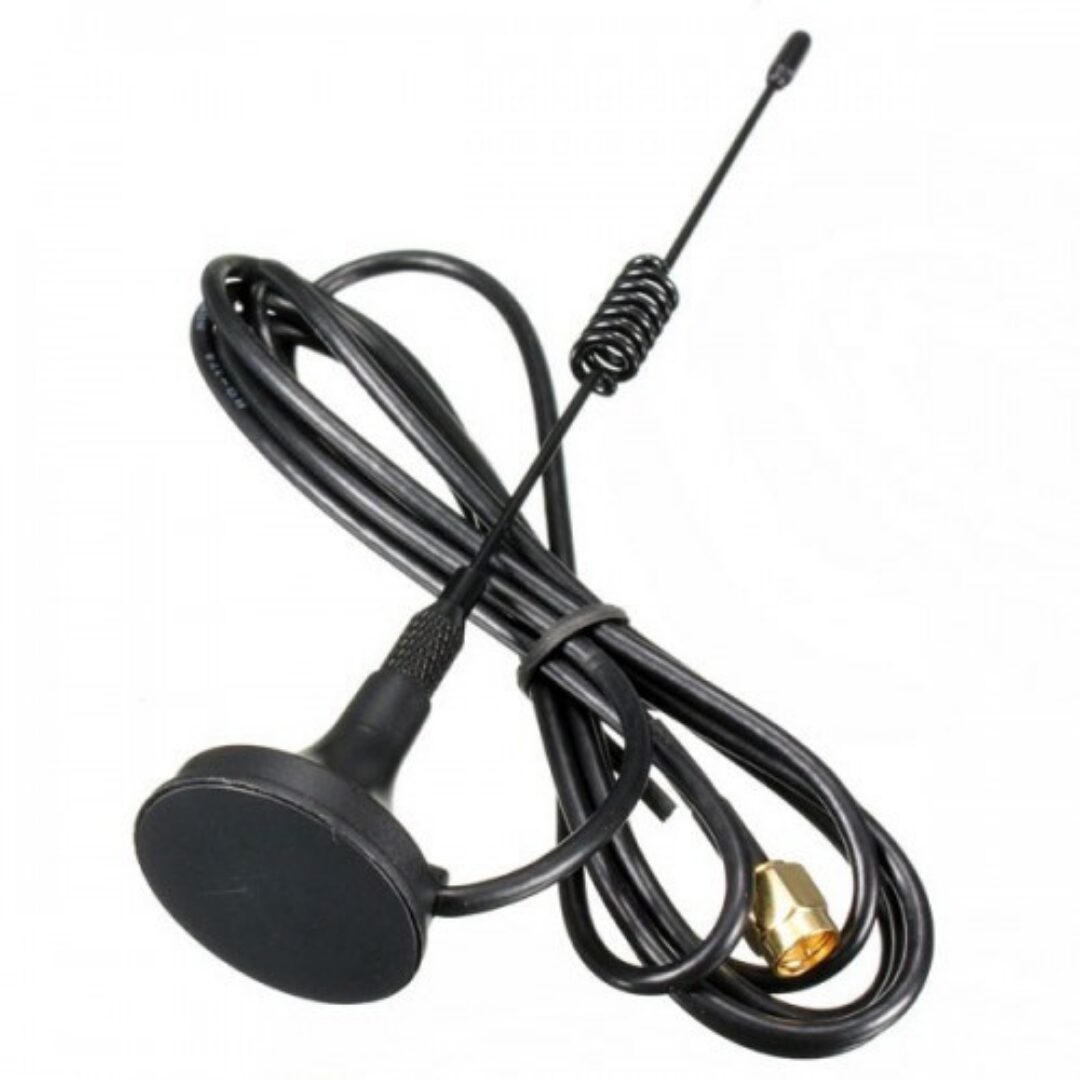

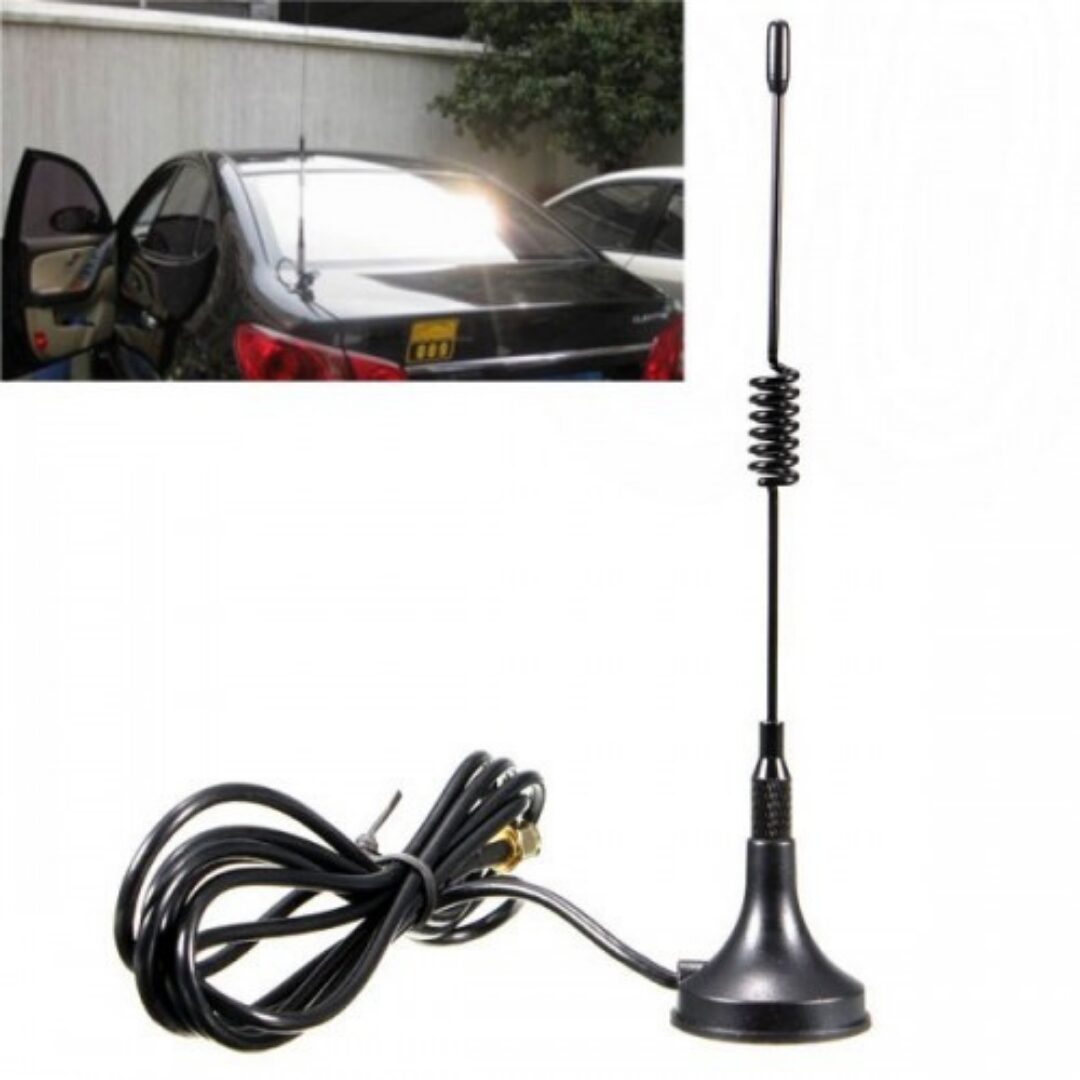

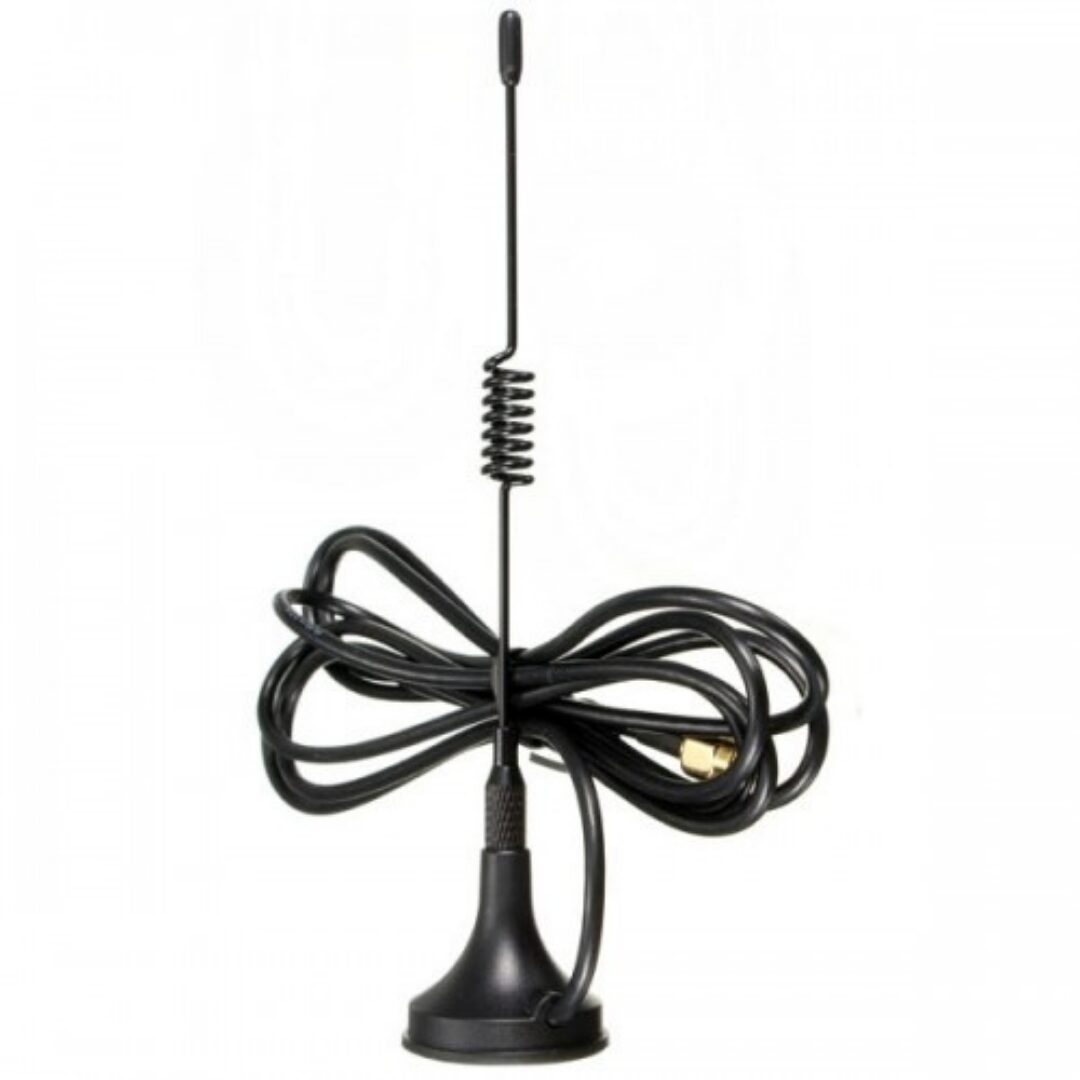

This is a Magnetic Mount Spring Antenna having a frequency of 2400 – 2483 MHz and a gain of 3dBi. This is very helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antenna’s magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal. It provides a high gain of 3dBi Antenna and is suitable for tough terrain and open-air environment applications. The input impedance of this antenna is 50 ohm. It comes with a magnetic base. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater, GSM sensor, GSM module & GSM modems.
Vayuyaan believes in satisfied customers, so whatever the product is, we first import them then test them for their supplier-defined and standard capabilities. Only after doing all the possible quality checks, we make the product available to our customers.
3dBi Antenna Application: 2.4 GHz Applications, Smart Meters
Electrical Specifications:
- Frequency range – 2400MHz- 2500MHz,
- S.W.R < 2.0
- Gain – dBi 3.0
- Polarization – Vertical
- Maximum Input Power- 10W
- HPBW – H: 3600; V: 400
Mechanical specifications:

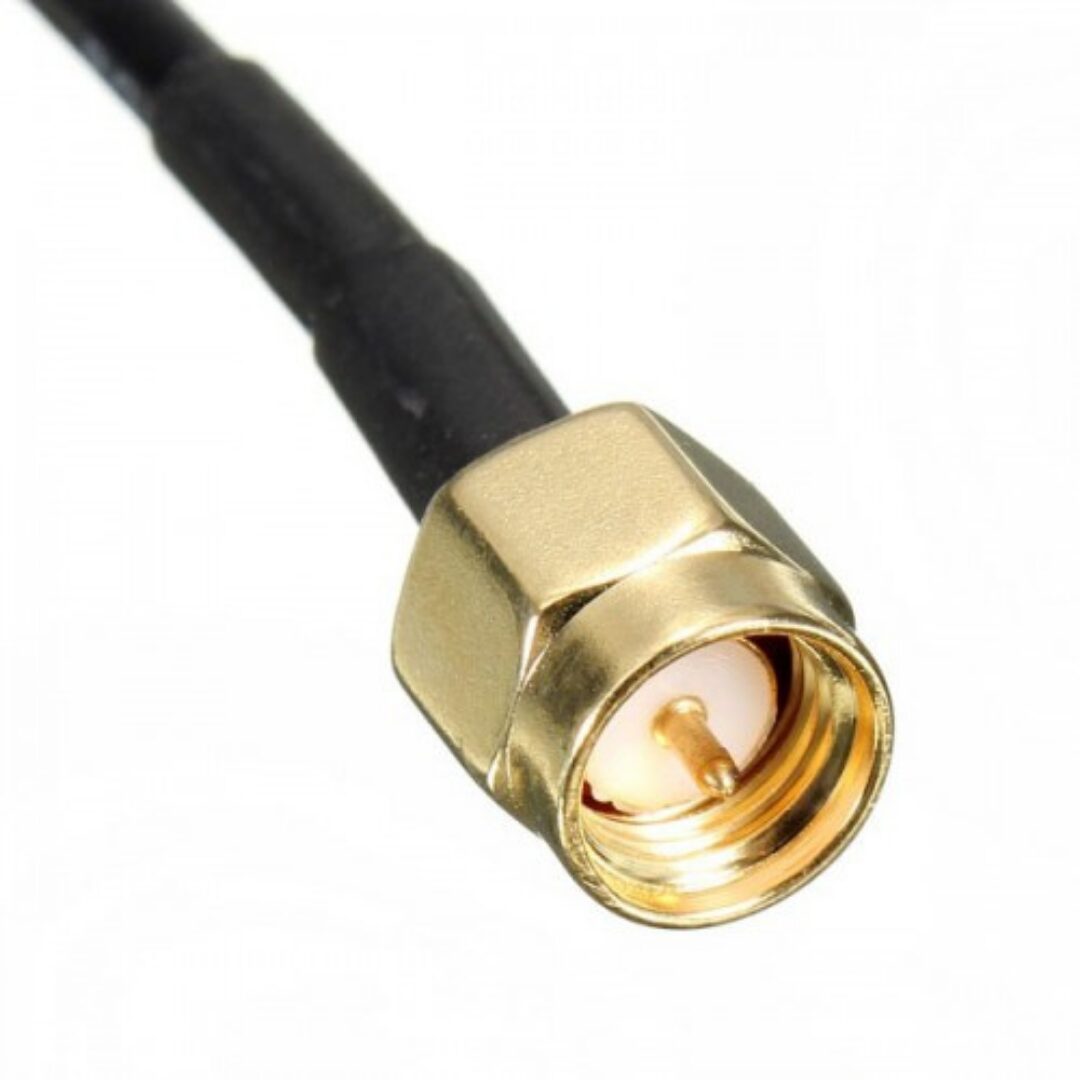

- Connector SMA male
- 3 Meter Wire Length
- Random material: Metal
- Random color: black
- Operation Temperature- -30~60 DegC
- Humidity-% 5~95
- Magnetic Base.
