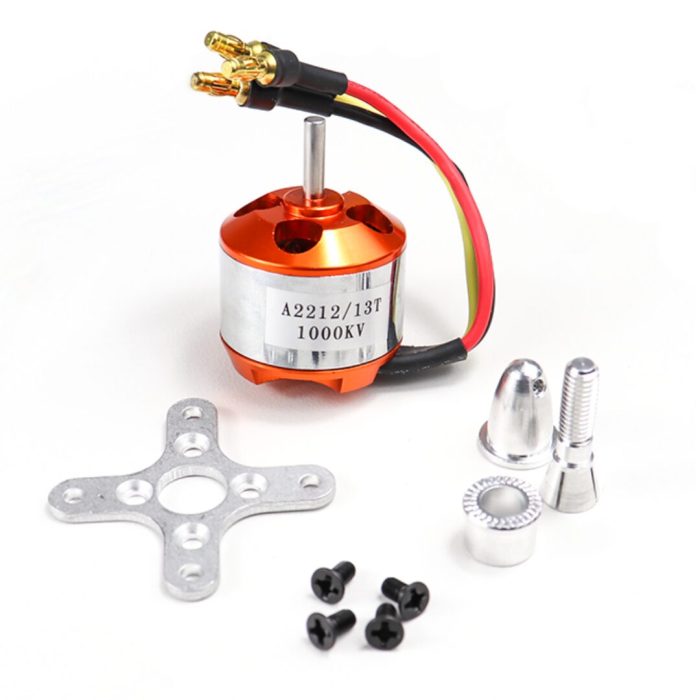

1000KV BLDC Motor A2212 with Soldered Bullet Connector
Original price was: ₹999.00.₹495.00Current price is: ₹495.00.
Specifications:
- Model: A2212
- KV Rating: 1000KV
- Type: Brushless
- Connector: Soldered Bullet Connector
- Shaft Diameter: 3.17mm
- Recommended Voltage: 11.1V
- Maximum Continuous Current: 13A
- Maximum Continuous Power: 143W
- Maximum Efficiency Current: 4-10A (75%)
- Internal Resistance: 0.105 ohms
- Recommended Propeller Size: 8-10 inches
- Wire Length: 150mm
- Motor Dimensions: 27.5 x 27mm
- Weight: 47g
Package Includes:
1 x 1000Kv Brushless Motor for Drone
1 x Prop Adapter
A Motor Holder (X-type) and a set of screws
The 1000KV BLDC Motor A2212 with Soldered Bullet Connector is a versatile and powerful motor designed for various RC applications. Whether you’re building a quadcopter, aeroplane, or another remote-controlled device, this motor delivers the required performance and reliability.
With its 1000KV rating, this brushless motor provides ample power for your RC projects. It offers excellent efficiency and torque, ensuring smooth and precise operation every time. Additionally, with its soldered bullet connector, installation is quick and easy, allowing you to spend less time setting up and more time enjoying your RC planes.
This 1000kv motor is built to last, with high-quality materials and construction that can withstand the rigours of RC use. Its compact size and lightweight design make integrating your projects easy without adding unnecessary bulk. Whether you’re a beginner or an experienced RC enthusiast, this motor will surely impress with its performance and durability.
The 1000KV BLDC Motor A2212 is also easy to maintain, requiring minimal upkeep to keep it running smoothly. Its low maintenance requirements mean you can spend more time enjoying your RC hobby and less worrying about repairs or replacements.
In conclusion, the 1000KV BLDC Motor A2212 with Soldered Bullet Connector is a reliable and powerful motor ideal for various RC applications. Its performance, durability, and ease of use make it a top choice for RC enthusiasts of all skill levels. Experience the power and precision of this exceptional motor in your next RC project.
Also, if you want to build your own drone, you can check our blog on How to Make a Drone with F450 Quadcopter Frame.
Pair it seamlessly with our F450 Quadcopter Frame. Drive the motor effortlessly using our 30A ESC Simonk. Elevate your aerial journeys – order the 1000KV BLDC Motor now and take your RC aspirations to new heights. Buy now.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 10 × 8 cm |
Q: What is an A2212 1000KV BLDC motor?
A: The A2212 1000KV BLDC motor is a brushless DC motor that is commonly used in a variety of hobbyist and DIY projects. It is designed to provide reliable and efficient performance while being relatively easy to use.
Q: What is the KV rating of the A2212 1000KV BLDC motor?
A: The KV rating of the A2212 1000KV BLDC motor is 1000. This rating refers to the RPM that the motor will spin per volt of input voltage.
Q: What is a soldered bullet connector?
A: A soldered bullet connector is a type of electrical connector that is commonly used to connect wires to motors and other electronic devices. It consists of a cylindrical metal pin that is soldered to the wire, and a socket that fits over the pin to create a secure electrical connection.
Q: What is the maximum current rating of the A2212 1000KV BLDC motor?
A: The maximum current rating of the A2212 1000KV BLDC motor is typically around 12A to 15A, depending on the specific model.
Q: What is the maximum voltage that the A2212 1000KV BLDC motor can handle?
A: The maximum voltage that the A2212 1000KV BLDC motor can handle is typically around 11.1V to 14.8V, depending on the specific model.
Q: What are some common applications for the A2212 1000KV BLDC motor?
A: The A2212 1000KV BLDC motor is commonly used in a variety of DIY projects such as drones, remote-controlled airplanes, and small electric vehicles. It can also be used in robotics and other applications that require precise motor control.
Q: How is the A2212 1000KV BLDC motor wired and controlled?
A: The A2212 1000KV BLDC motor is typically wired to an electronic speed controller (ESC) that provides power and control signals to the motor. The ESC can be controlled using a remote or another input device to vary the speed and direction of the motor.
You may also like…
1000KV BLDC Motor with Soldered Bullet Connector (Set of 4)
Specifications:
- Motor Type: 1000kv brushless motor
- KV Rating: 1000KV
- Operating Voltage: 7.4V to 11.1V
- Shaft Diameter: 3.17mm
- Current Handle Capacity: 12A
- No-Load Current: 500 mA
- Max. Efficiency Current: 4 ~ 10 A
- Compatible LiPO Batteries: 2S ~ 3S
- Connector Type: Pre-soldered bullet connectors
- Mounting: Suitable for standard motor mounts
- Dimensions:Â 27.5 x 24 mm
- Weight: 64 g
Package Includes:
4 x A2212 1000Kv Brushless Motor for Drone 4 x Prop Adapter A Motor Holder (X-type) and a set of screws
1000KV Motor with 30A ESC and 1045 Propeller Set for RC Plane
Specifications:
- Motor Type: 1000KV BLDC Brushless Motor
- Motor KV Rating: 1000KV
- Electronic Speed Controller: 30A ESC
- Battery Compatibility: Lipo Battery
- Application: RC Plane
- Motor Shaft Diameter: 3.17 mm
- Motor Dimensions: 27.5 x 27 mm (L x W)
- ESC Dimensions: 45 x 24 x 9 mm (L x W x H)
- Propeller Size: 1045 (10x4.5 inches)
- Total Weight: 130 g
Package Includes:
1 x 1000KV Brushless Motor for Drone with Soldered Connector 4 x Prop Adapter Motor Holder (X-type) and set of screws 1 x ESC 30A BLDC ESC 2 x 1045(10×4.5) SF Propellers (1CW, 1CCW) 2 x Sets of prop reducers
1045 Propeller Pair 1CW+1CCW 1045/1045R 10 Inch, Set of 2
Specifications:
- Prop. Diameter:Â 10 inch
- Length:Â 10 inch
- Pitch:Â 4.5 inch
- Shaft Diameter:Â 9.5 mm
- Total Length:Â 10 inch / 254 mm
- Material:Â Carbon Nylon
- Plastic Reducers:Â 2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25
- Rotation Direction:Â CW, CCW
- Rotation:Â 1CW+1CCW
- No. of Blades:Â 2
- Weight: 56 g
Package Includes:
2 x Counter-Clockwise (CCW) Propellers 1045 (10×4.5) 2 x Clockwise (CW) Propellers 1045 (10×4.5) Set of Prop Reducers
1045/1045R 10 inch Propeller Pair (CW+CCW), Black
Specifications:
- Prop. Diameter: 10 inch
- Length: 10 inch
- Pitch: 4.5 inch
- Shaft Diameter: 9.5 mm
- Total Length: 10 inch / 254 mm
- Material: Carbon Nylon
- Plastic Reducers: 2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25
- Rotation Direction: CW, CCW
- Rotation: 1CW+1CCW
- No. of Blades: 2
- Weight: 28 g
Package Includes:
1 x Counter-Clockwise (CCW) Propellers 1045 (10×4.5) 1 x Clockwise (CW) Propellers 1045 (10×4.5) Set of Prop Reducers
1400KV BLDC Brushless Motor With Soldered Bullet Connector (Set of 4)
Specifications:
- Model: A2212
- KV: 1400
- Motor Type: Brushless DC (BLDC)
- Number of Motors: 4
- Connector Type: Soldered bullet connectors
- Compatible With: Quadcopters, hexacopters, octocopters
- Recommended Propeller Size: 8 to 10 inches
- Operating Voltage: 7.4V to 11.1V
- Maximum Continuous Current: 12A
- Maximum Continuous Power: 120W
- Shaft Diameter: 3.17mm
- Shaft Length: 12mm
- Mounting Hole Spacing: 16mm x 19mm
- Motor Wire Length: 150mm
- Dimensions: 27.5mm x 27mm x 27mm
- Weight: 50g per motor
Package Includes:
- 1 x A2212 1400Kv Brushless Motor for Drone
- 1 x Prop Adapter
- A Motor Holder (X-type) and a set of screws
1400KV BLDC Motor with Soldered Bullet Connector
Specifications:
- Model: A2212
- KV: 1400
- Motor Type: Brushless DC (BLDC)
- Connector: Soldered Bullet Connector
- Operating Voltage: 7.4V - 11.1V
- Maximum Current: 12A
- Maximum Power: 132W
- Motor Dimensions: 27.5mm x 27mm
- Shaft Diameter: 3.17mm
- Weight: 47g
- Application: Drone, RC Car, DIY Projects
Package Includes :
- 1 x A2212 1400Kv Brushless Motor for Drone
- 1 x Prop Adapter
- A Motor Holder (X-type) and a set of screws
2200mAH Lipo Battery 11.1v for Quadcopter Plane Multirotor
Specifications:
- Capacity: 2200mAh
- Voltage: 11.1V
- Battery Type: Lithium Ion (Li-ion)
- Configuration: 3S (3 cells in series)
- Discharge Rate: 30C (continuous)
- Charge Rate: 1 ~ 3 C
- Discharge Plug: XT-60
- Balance Plug: JST-XH
- Max. Burst Discharge: 60C (132.0A)
- Max. Charge Rate: 5 C
- Max. Continuous Discharge: 30C(66.0A)
- Dimensions: 106mm x 34mm x 23mm
- Weight: 175g
Package Includes:
1 x 2200mAH Lipo Battery 11.1v for Quadcopter Plane Multirotor

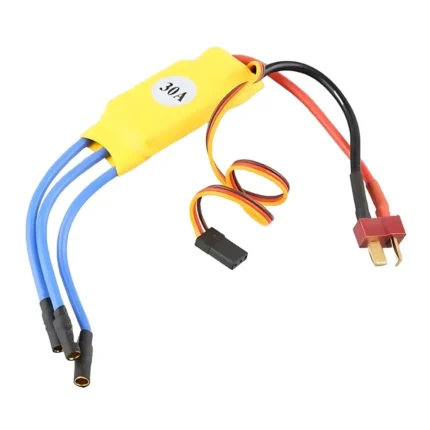

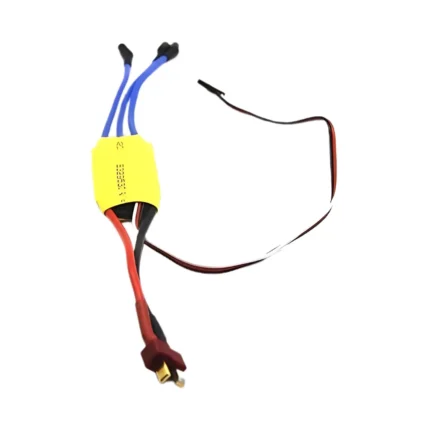

30A ESC – Electronic Speed Controller with Dean Connector
